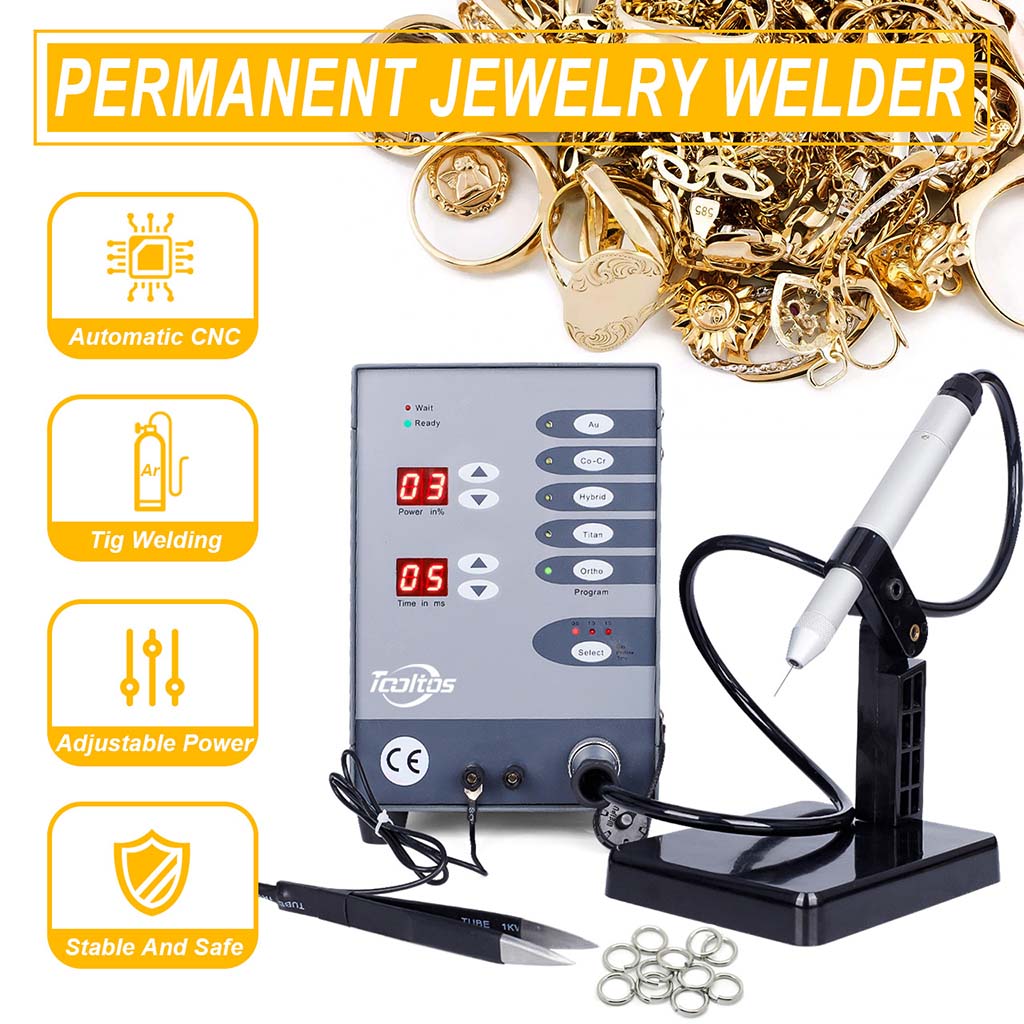

Tooltos Automatic CNC Pulse Argon Arc Tig Jewelry Spot Welding Machine

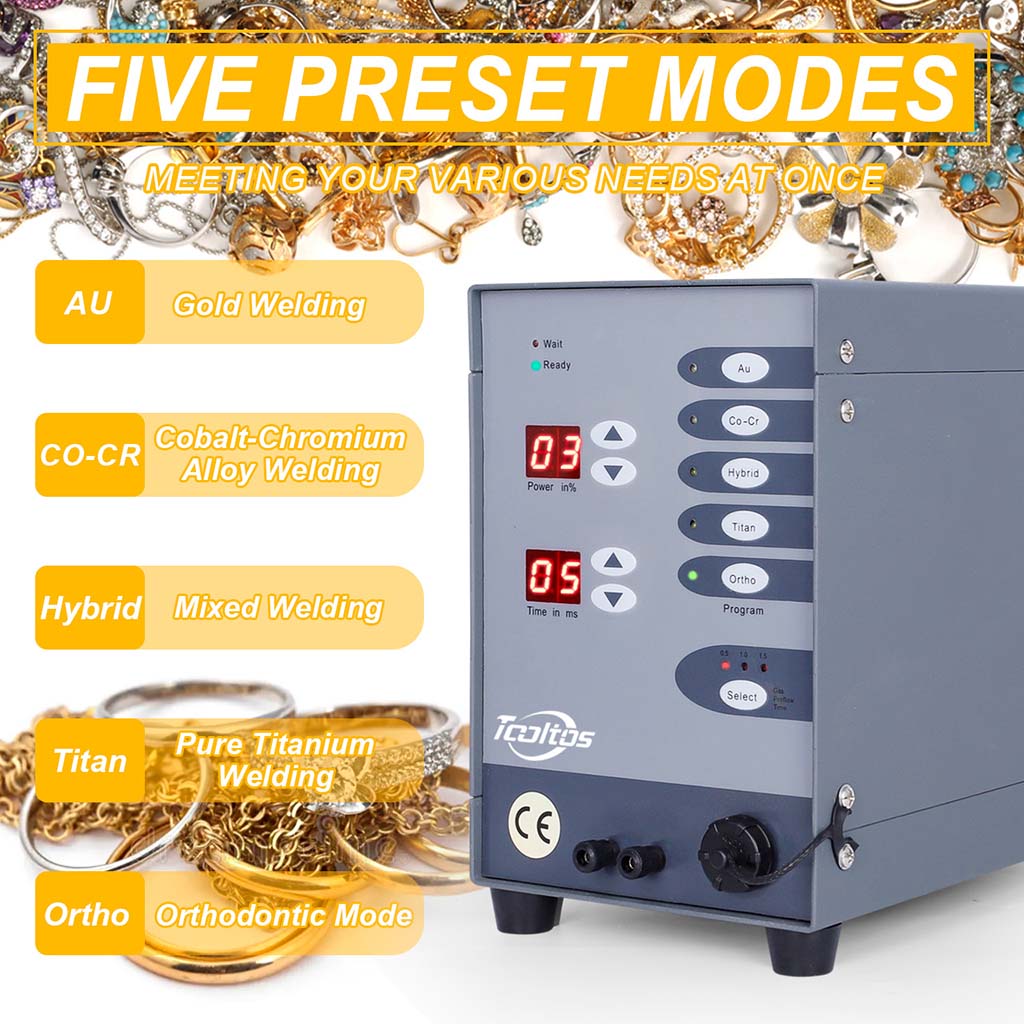

5 Shortcut Modes: This permanent jewelry welder is an ideal choice for a variety of metalworking tasks. Five preset basic procedures allow for quick and easy welding of gold (Au), cobalt-chromium (Co-Cr), hybrid welding (such as precious and non-precious), titanium (Ti), and orthodontics.
Feature: This spot welding machine has stable performance, small size, easy operation, low noise and easy maintenance. The cost of equipment and operation is lower than laser welding machine and has the function of laser welding machine.

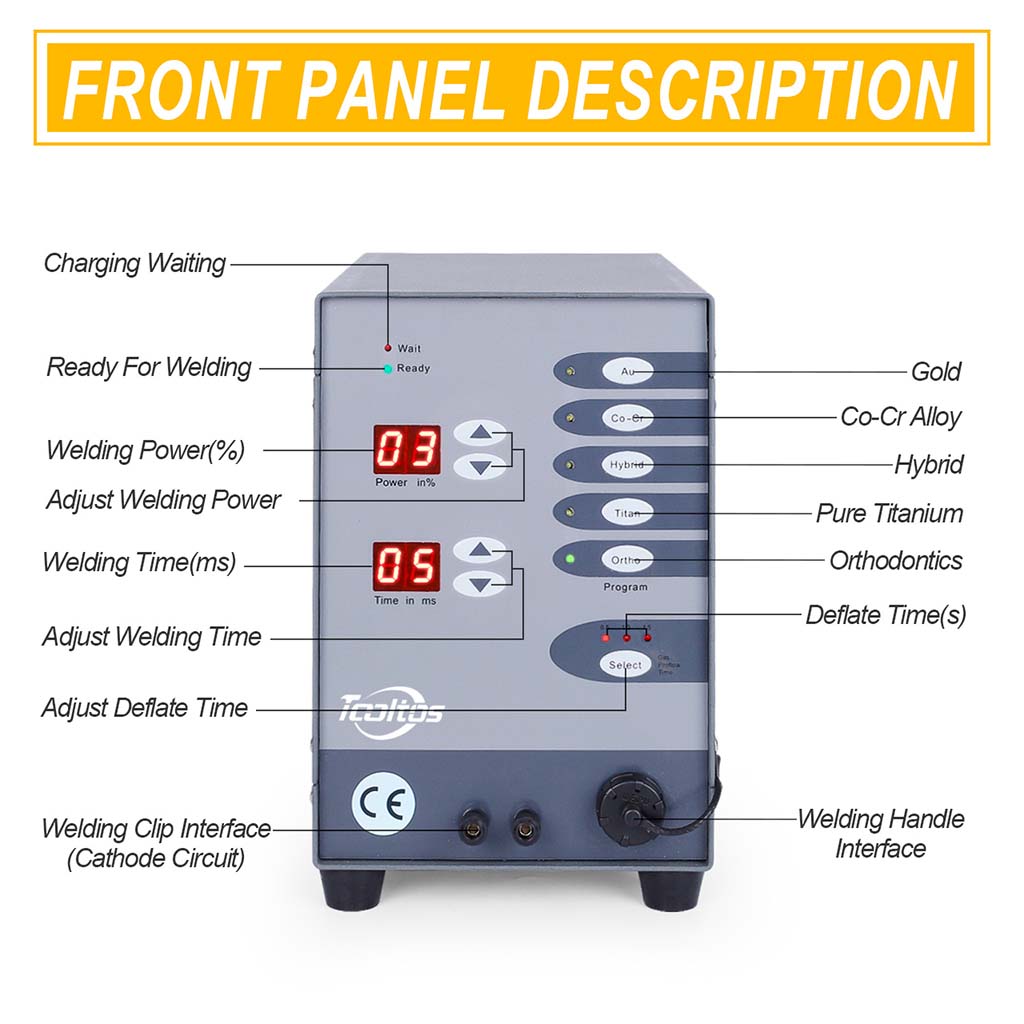

Accurate Control: Adjustable power and pulse settings allow you to adjust penetration depth and weld joint diameter. If there is no operation for 5 minutes, the machine switches to quadrature mode to prevent any damage to the workpiece.
Wide Application: This equipment is suitable for hardware workpieces, jewelry making, dental welding, mold repair, pure gold welding, cobalt-chromium alloy welding, pure titanium welding, and orthodontics.

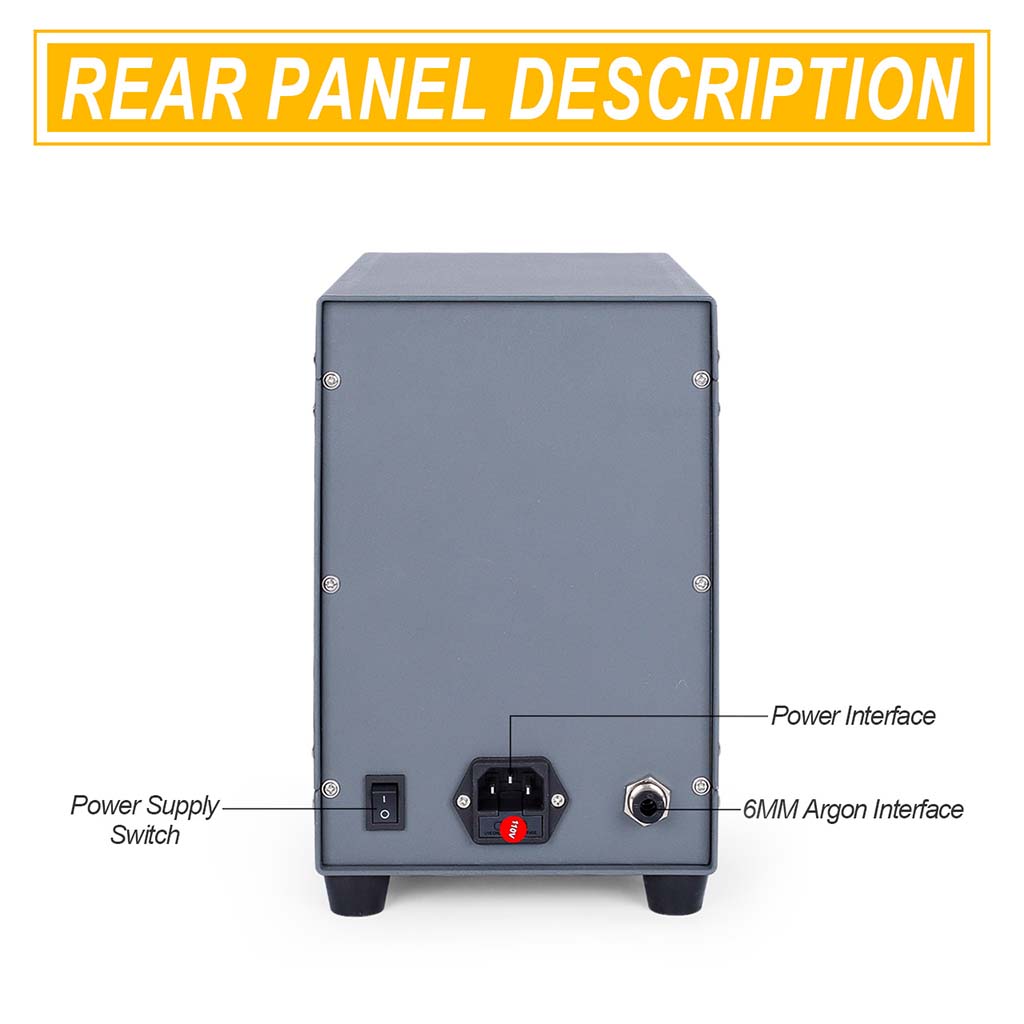

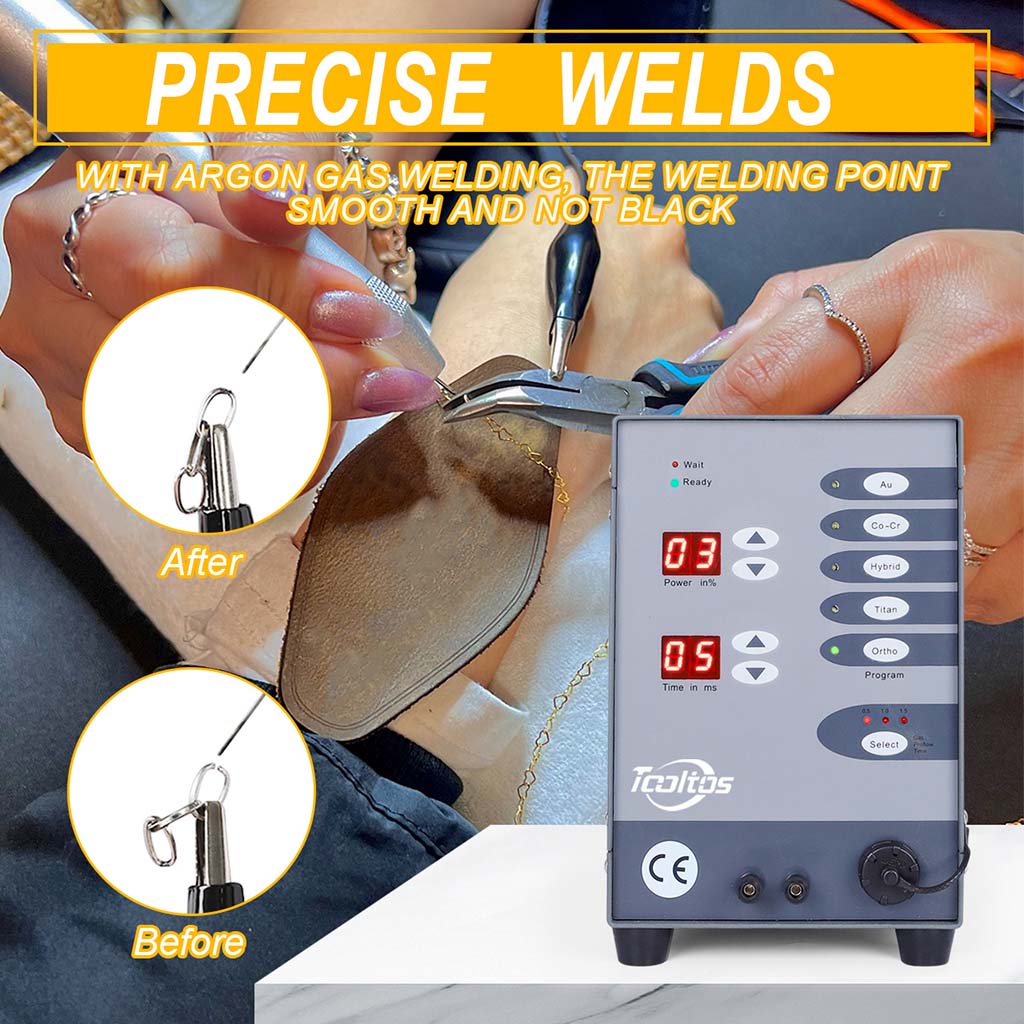

Tip: Argon gas can be connected through the pressure gauge for better welding results. It can work normally without argon gas. (Argon gas needs to be purchased by yourself)

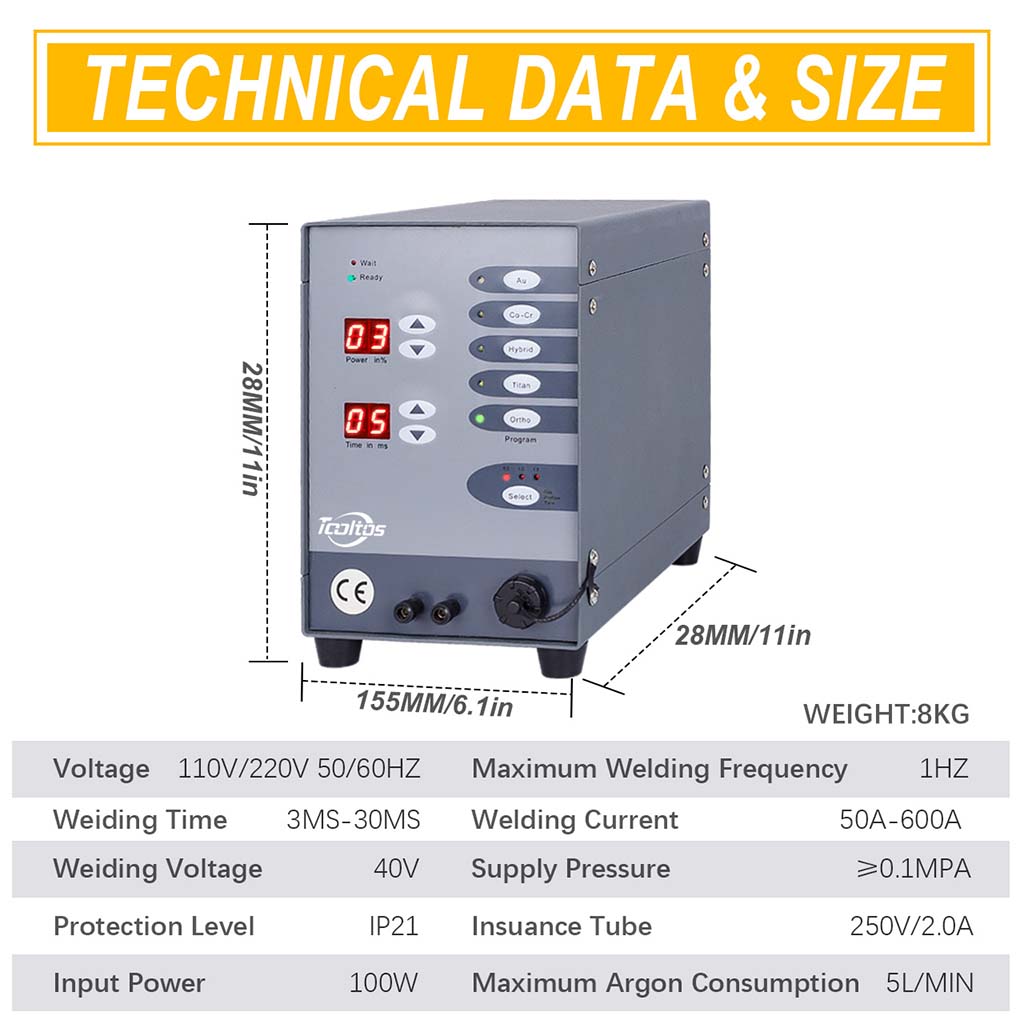

Technical Parameter

Input voltage: 220V / 110V
Frequency: 60 Hz/50 Hz
Power consumption: 100W
Protection level: IP21
Air supply pressure: above 0.1 Mpa
Welding voltage: 40V
Welding current: 50 A-150A
Welding time: 3ms--30ms
Maximum welding thickness: 5mm
Maximum value. Welding frequency: 1Hz
Maximum value. Argon consumption: 5L/min
Fuse: 250V/ 2.0A
Package weight: 8.0 kg
Packing size: 42 cm x 30 cm x 26 cm (16.54 in x 11.81 in x 10.24 in)

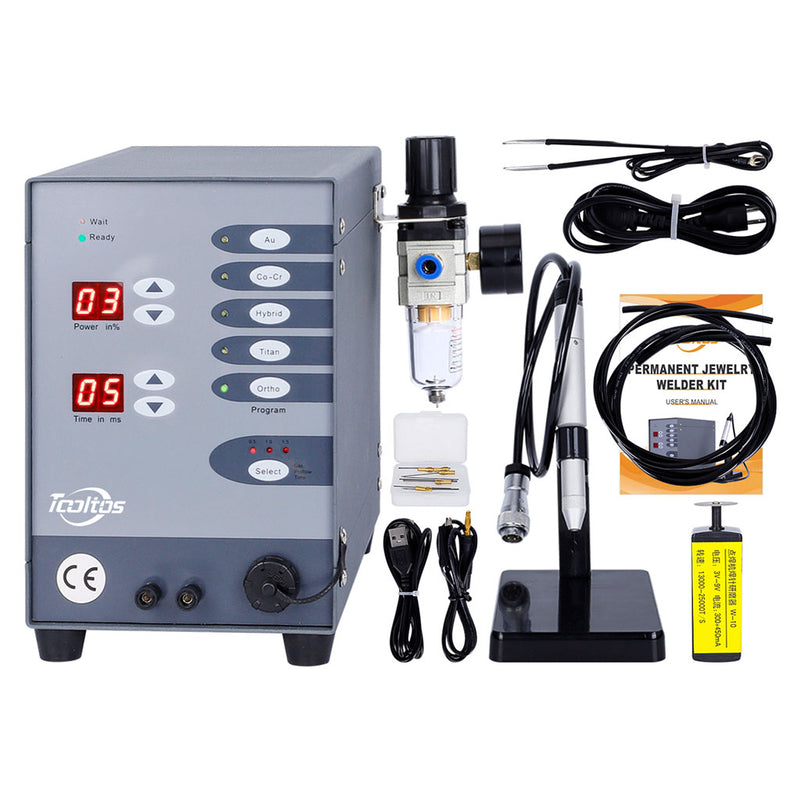

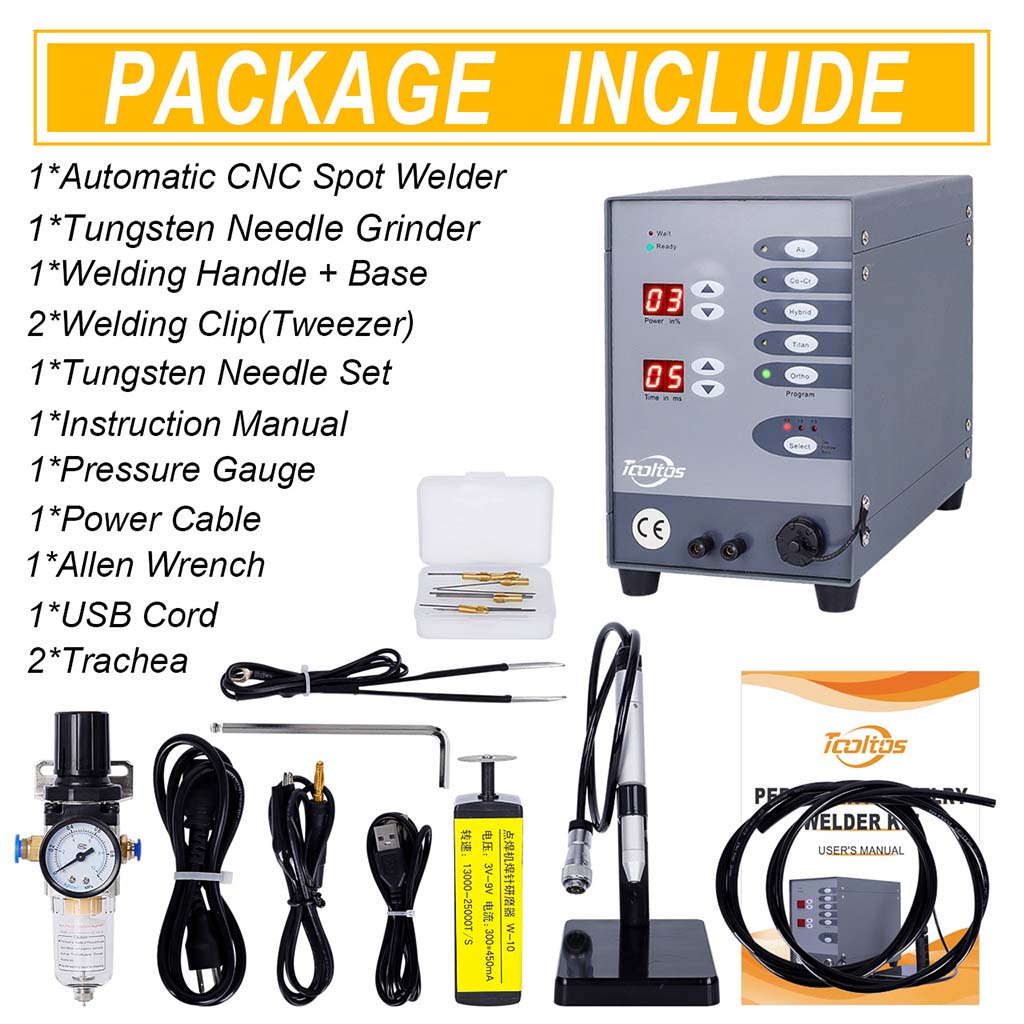

Package Includes

1* Automatic CNC Spot Welder
1* Pedestal + Handle
1* Welding Loop Clamp
1* Spot Welding Tungsten Needle Grinder
1* Pressure Gauge
1* Trachea 2m
1* Tungsten Needle Kit

To avoid electric shock, fire and dangerous accidents when using electrical equipment, please pay attention to the following basic safety measures.
1. Please read this manual and precautions before using the instrument. Keep this manual near the instrument for easy viewing.
2. Keep electronic equipment away from children. It is absolutely forbidden for children to play with electrical equipment, spare parts and other cables.
3. Maintain good ventilation and lighting when the equipment is running, and do not work in a humid and dusty environment to avoid accidents due to abnormal environments.
4. Do not let any liquid enter the instrument.
5. A strong arc will be generated during operation, and irrelevant personnel should stay away from the work site to avoid eye injury.
6. Do not use cables to drag the equipment. The cable should be kept away from heat, oil and other sharp objects to avoid damage to the cable.
7. The power supply must be completely cut off before cleaning the equipment and unpacking.
8. The structure of this machine is compact and reasonable. Doesn't it need to be special? And tedious maintenance. Pay attention to the cleanliness of the instrument, especially the microscope. Dirty accessories will seriously affect the observation of objects.
9. Cover the dust cover when the instrument is not working.
10. For your safety, please use the correct accessories.
Note: This machine does not have a microscope, and it can work without a microscope.
