Tooltos 30A Sparkle Pulse Jewelry Welder For Gold, Silver And Platinum
- 99 in magazzino
Descrizione

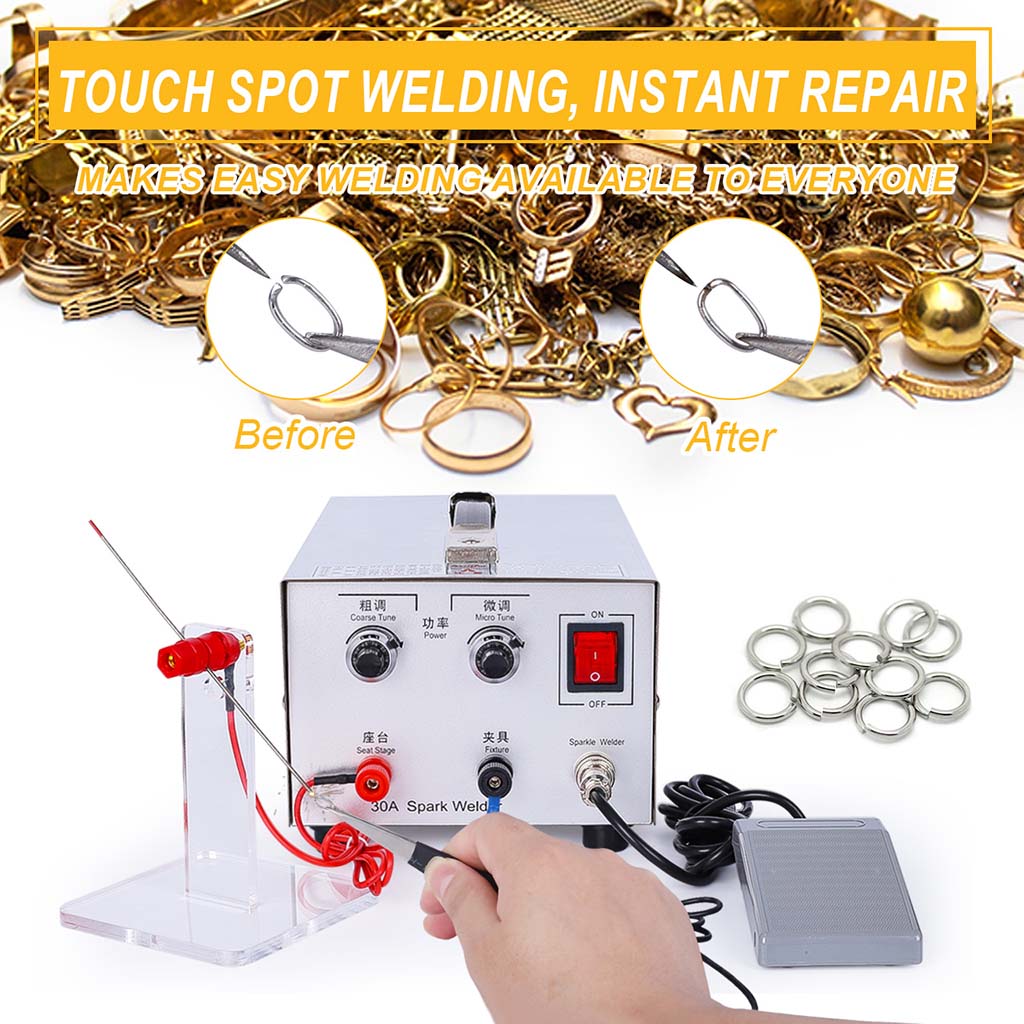

This powerful jewelry welder can be utilized for Platinum, Gold, Silver, Steel fast welding, specifically on ring mouths and melon buckles. Its fine wire precision welding allows for direct welding without the need for welding powder, resulting in smooth welding points. Its advanced plasma high frequency discharge principle instantly forms a molten pool in the metal weld. The output power can be adjusted to accommodate different wire sizes, ensuring smooth, strong, and efficient welding of workpieces.

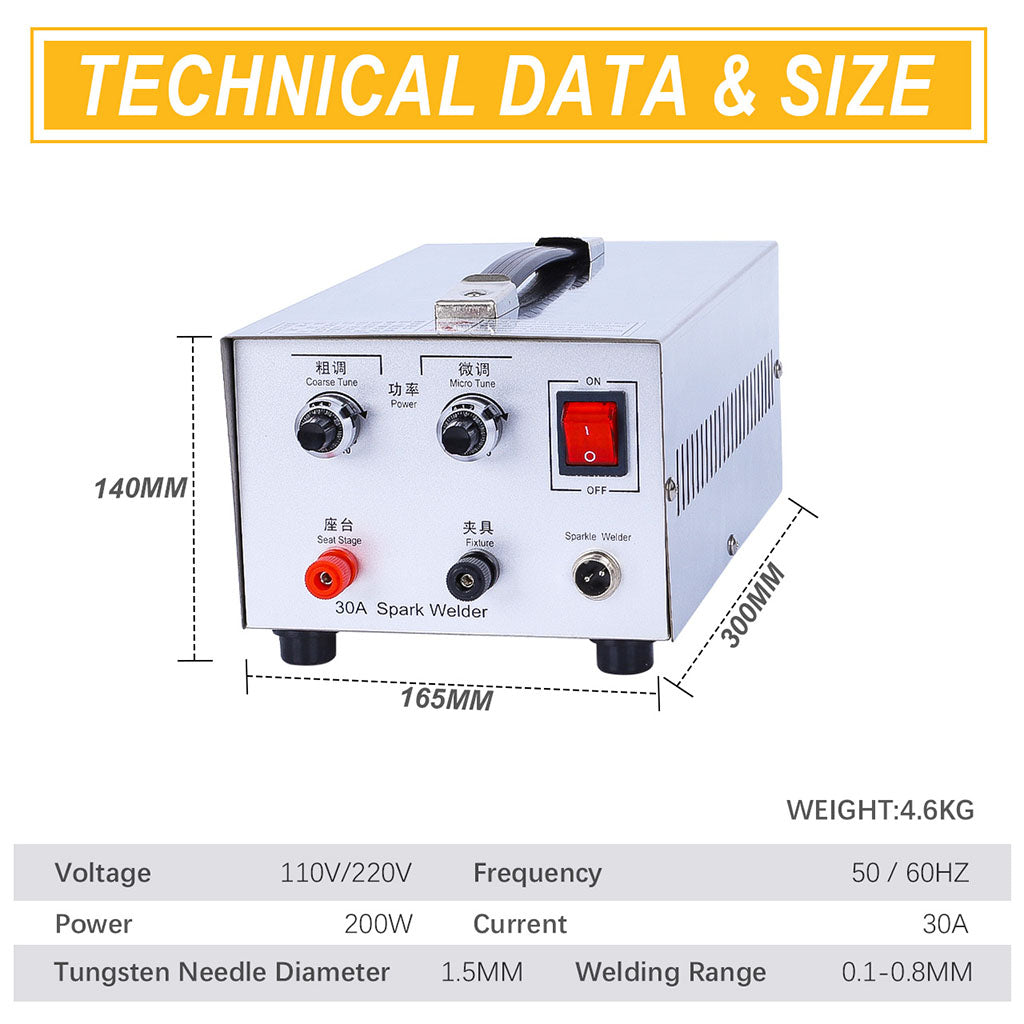

Technical Parameter
Voltage: 110V/220V
Frequency: 50/60HZ
Power: 200W
Current: 30A
Welding Range: 0.1-0.8MM
Tungsten Needle Diameter: 1.5MM
Machine Size: 165*140*300MM
Weight: about 4.6KG

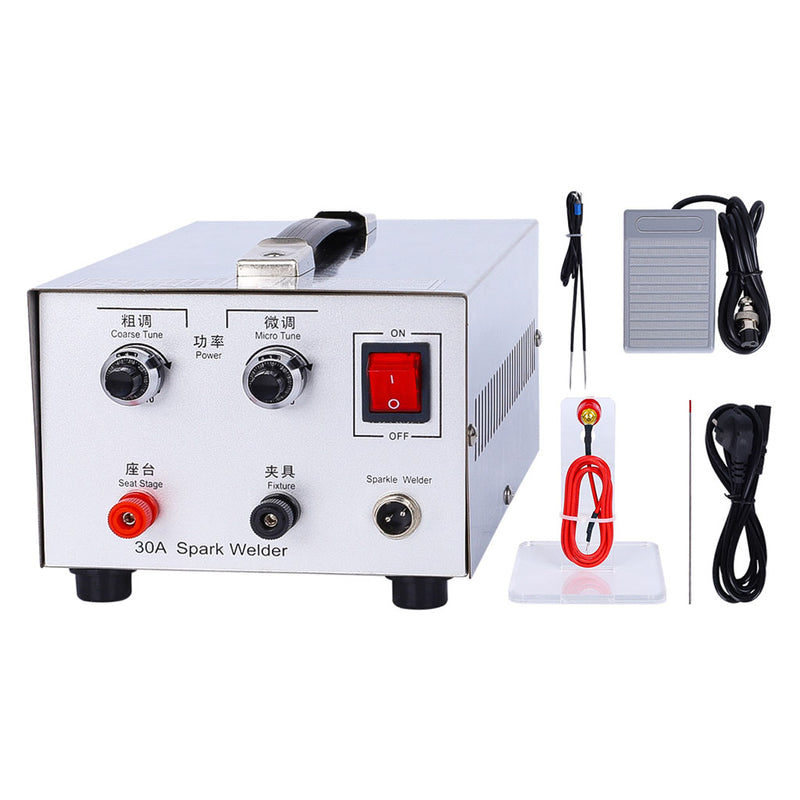

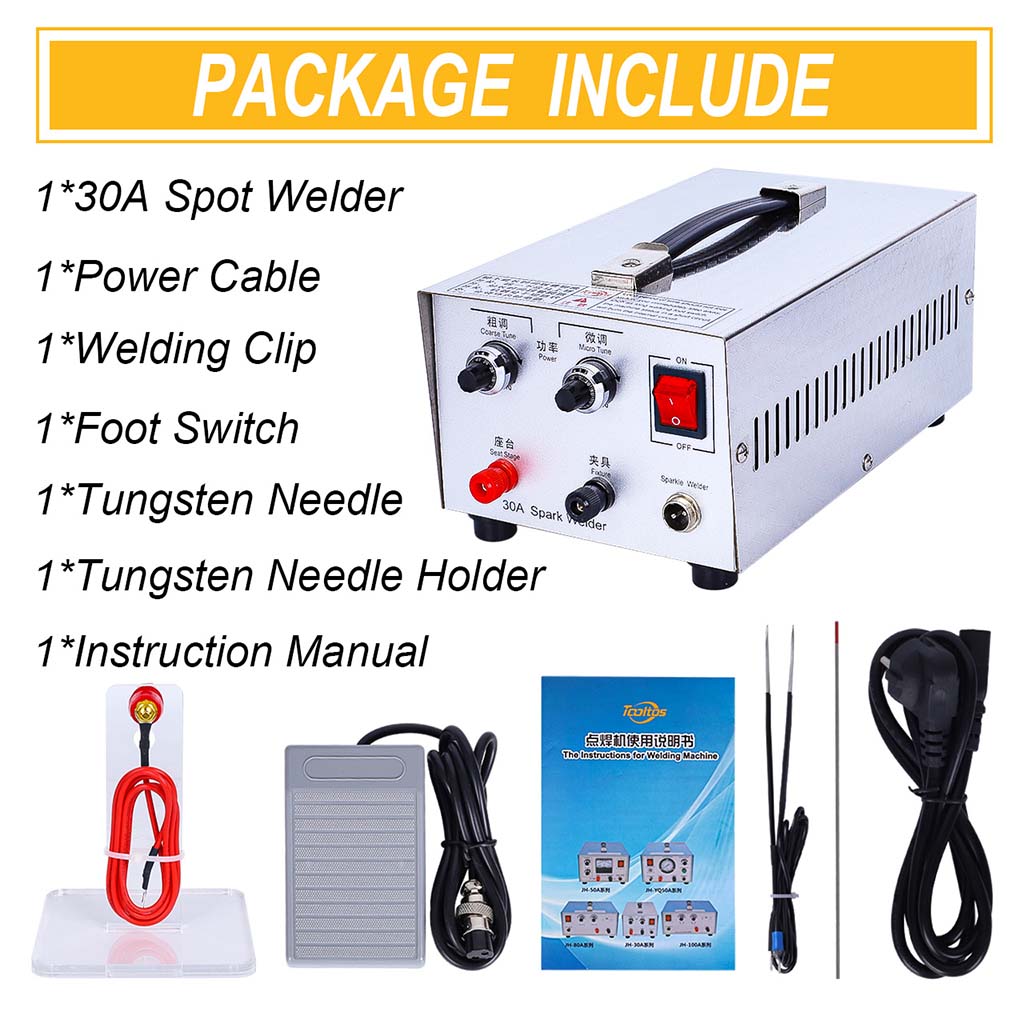

Package Includes
1*30A Sparkle Pulse Jewelry Welder
1*Foot Switch
1*Power Cable
1*Welding Clip
1*Tungsten Needle
1*Tungsten Needle Holder
1*Instruction Manual
Operation Steps

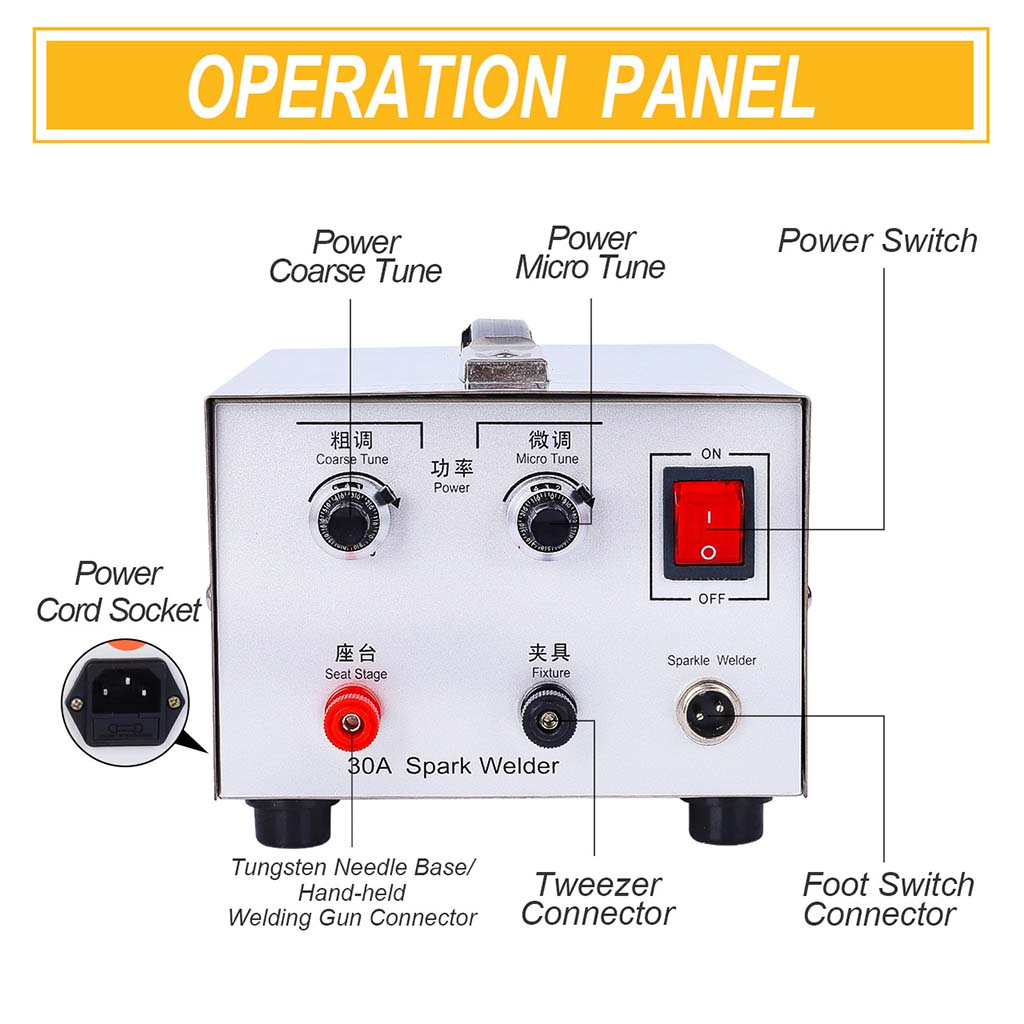

1. Connect the electrode clamp to the negative output pole and the electrode holder to the positive output pole, turn on the power supply, and then turn on the power switch.
2. Adjust the power knob, divided into coarse and fine adjustment. According to the requirements of the work can be arbitrarily adjusted scale value
3-use tweezers to clamp the workpiece workpiece interface aligned with the tungsten needle (the best distance of 5mm) the workpiece can not be contacted. The tungsten needle can be sharpened on the grinder, using the principle of tip discharge work.
Tungsten needle diameter 1.5mm
4 - Step on the foot switch with your foot. (Remove the foot). Spot welding is complete.
Note
1. Foot can not be a long time to step on the foot switch, step on it immediately removed, such as a long time to step on the switch, the machine is in a short-circuit state, will burn the internal circuits.
2. Flash to the eyes have harm, please do a good job when using protective measures.
3. When you step on the foot switch, do not touch the metal part of the tungsten needle and tweezers at the same time, otherwise there will be a sense of pinprick.
4 non-professionals, please do not disassemble, there is a high voltage.
